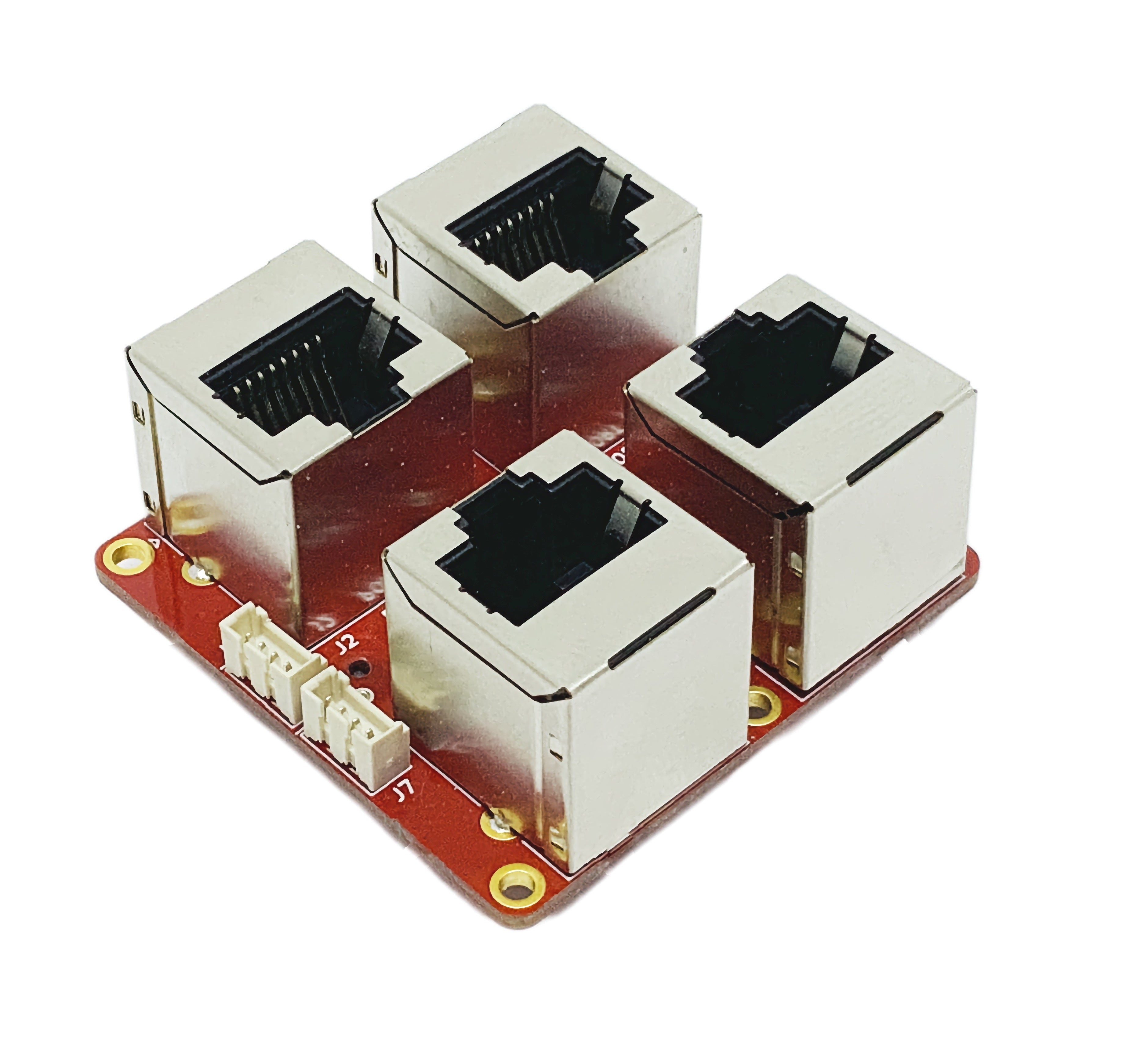

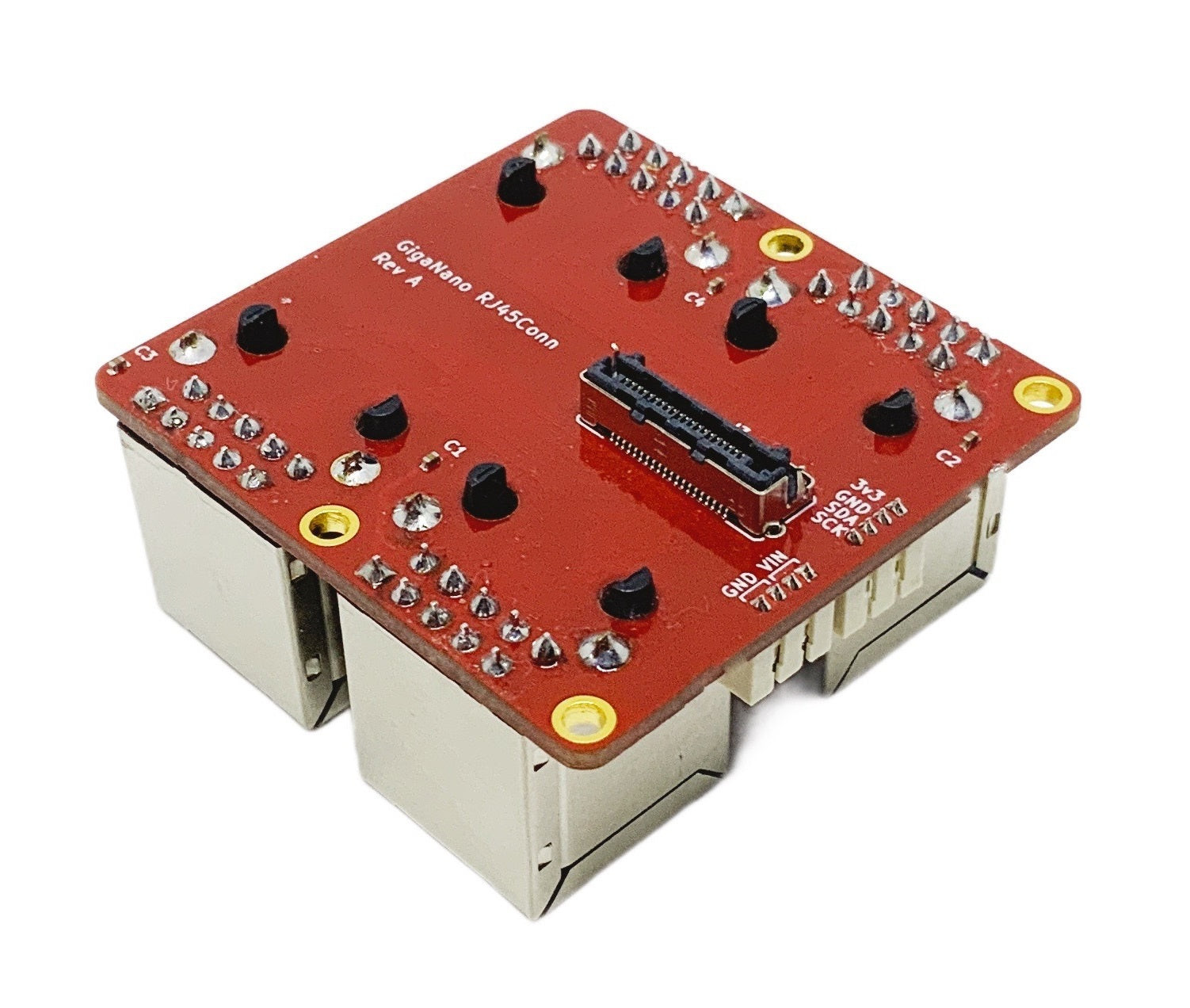

This is the RJ-45 stackable breakout board for GigaBlox Nano.

This board puts the four ports on GigaBlox Nano onto four RJ-45 headers. Power for GigaBlox Nano put onto a PicoBlade header.

The RJ-45 jacks used on this board integrate transformers, meaning this board can be used in any ethernet system, even if grounds are not common.

INCLUDED CABLES

We include everything you need to make this board work out of the box. Each board ships with:

1 x Molex PicoBlade to Tinned Leads, 4 way, 0.3 meter
SKU: BB-PBTL1-4-0.3

Covered under the BotBlox Supply Guarantee Program

This board is covered by our supply guarantee, which guarantees availability and low lead times until at least 2028. Read more about the BotBlox Supply Guarantee Program.
