Tiny, Low Power, Embeddable, 1G/10G Routing

RouterCore Nano brings 8 x 1GBASE-T + 2 x 10G in an ultra small, embeddable module. RouterCore Nano is designed for modern ethernet-based autonomous platforms which are moving to ethernet as a communications backplane. By providing sophisticated network and traffic management, without adding significant size, weight or power, RouterCore Nano enables far more powerful systems to be built.

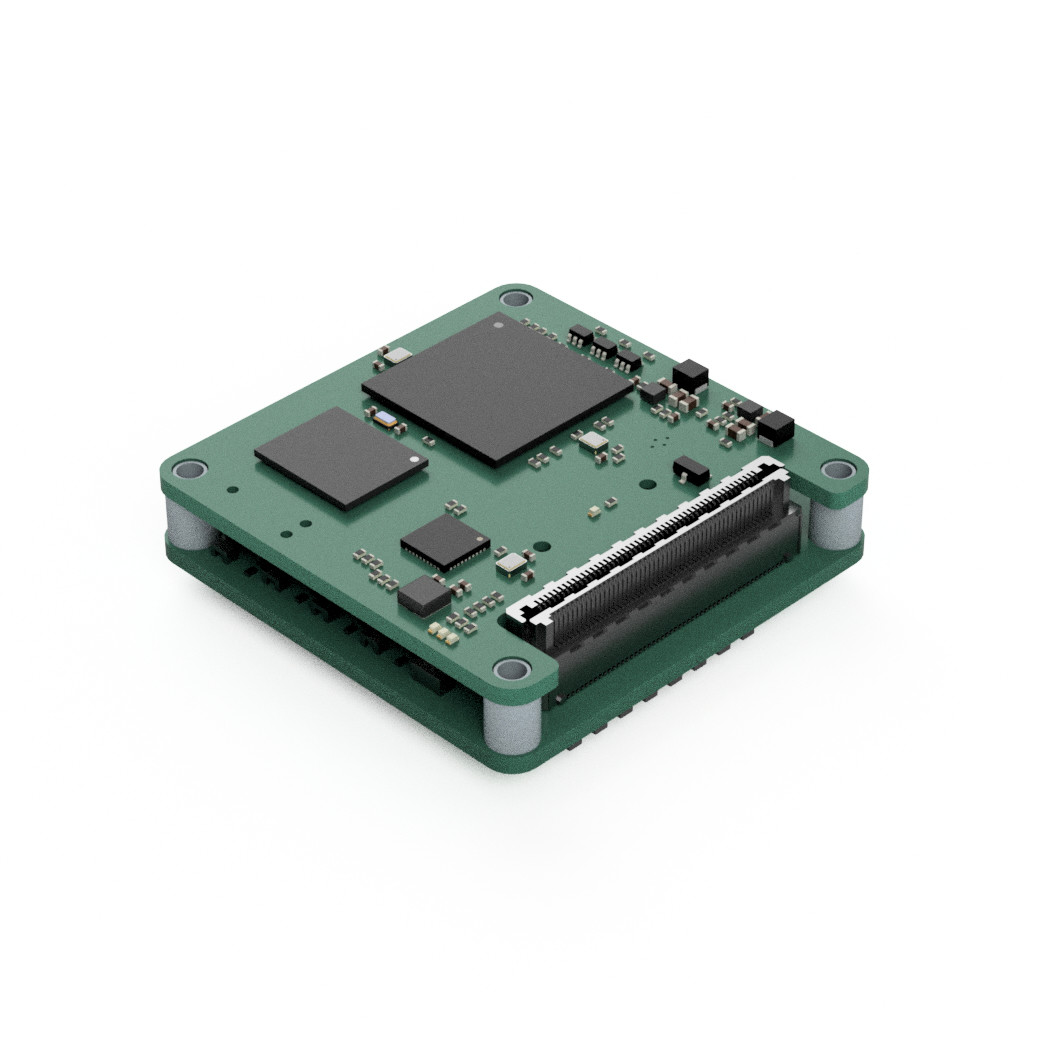

RouterCore Nano is 42mm x 42mm x 11mm, drawing a maximum of 5 watts at full traffic load. This achieves:

• Bandwidth volume density of 144Mbps per cm³
• Bandwidth power density of 5,600Mbps per Watt

Nothing on the market currently achieves such functionality in such a small package.

Plug and play ready

RouterCore Nano contains all ethernet magnetics and accepts unstable input voltages from 4 to 60V (transient and voltage protected) meaning it can be dropped straight into a carrier board. It boots up in seconds as an unmanaged switch, with command line and GUI access for routing features available over over UART or ethernet ports

Insane connectivity

• 8 x 10/100/1GBASE-T ports (magnetics included)
• 2 x 10G capable USXGMII/10GBASE-R/SGMII/1000BASE-X ports*
• 1 x TTL level UART serial ports

• 1 x USB2.0 port
• 1 x CAN ports
• 4 x GPIO ports

*Used for SFPs, CPU connector, or RouterCore to RouterCore expansion.

Insane functionality

RouterCore supports the following routing abilities

• Full Layer 2 switch functionality
• Full Layer 3 routing functionality
• RSTP/STP
• IEEE1588v2 PTP (E2E and P2P, Transparent and Boundary Clock)
• VLAN (IEEE 802.1Q Tag Based or Port Based)
• Multi-WAN
• Multicast routing (IGMP V1/V2/V3 and MLD)
• QoS (IPv4/IPv6, QoS/CoS packet prioritization - 802.1p)
• Update over Ethernet ports
• SSH tunnelling

RouterCore also supports

• UART TTL serial to ethernet conversion
• CAN to ethernet conversion

OpenWRT or Linux

RouterCore Nano runs OpenWRT by default but can be flashed with any different flavor of Linux, allowing full routing and software functionality.

Technical Specifications

• Voltage input: 4 - 60V (transient and reverse protected)
• Power consumption: 5.5 Watts (all ports operating), 1.8 Watts (idle)
• Dimensions: 42 x 42 x 11 mm
• Ethernet Ports: 8 x 10/100/1GBASE-T + 2 x 10G USXGMII/10GBASE-R/SGMII/1000BASEoX

• CAN ports: 2
• UART ports: 2
• GPIO pins: 4
• Operating temperature: -40°C to 105°C

• Shock rating: 40G for 23ms, 90G for 6ms
• Total Ionizing Dose (Radiation): 20Krad[si]

NDAA Compliance

RouterCore Nano is assembled in the USA and is fully NDAA compliant. Get in touch for our compliance documentation.
