See farther without giving up horizontal coverage

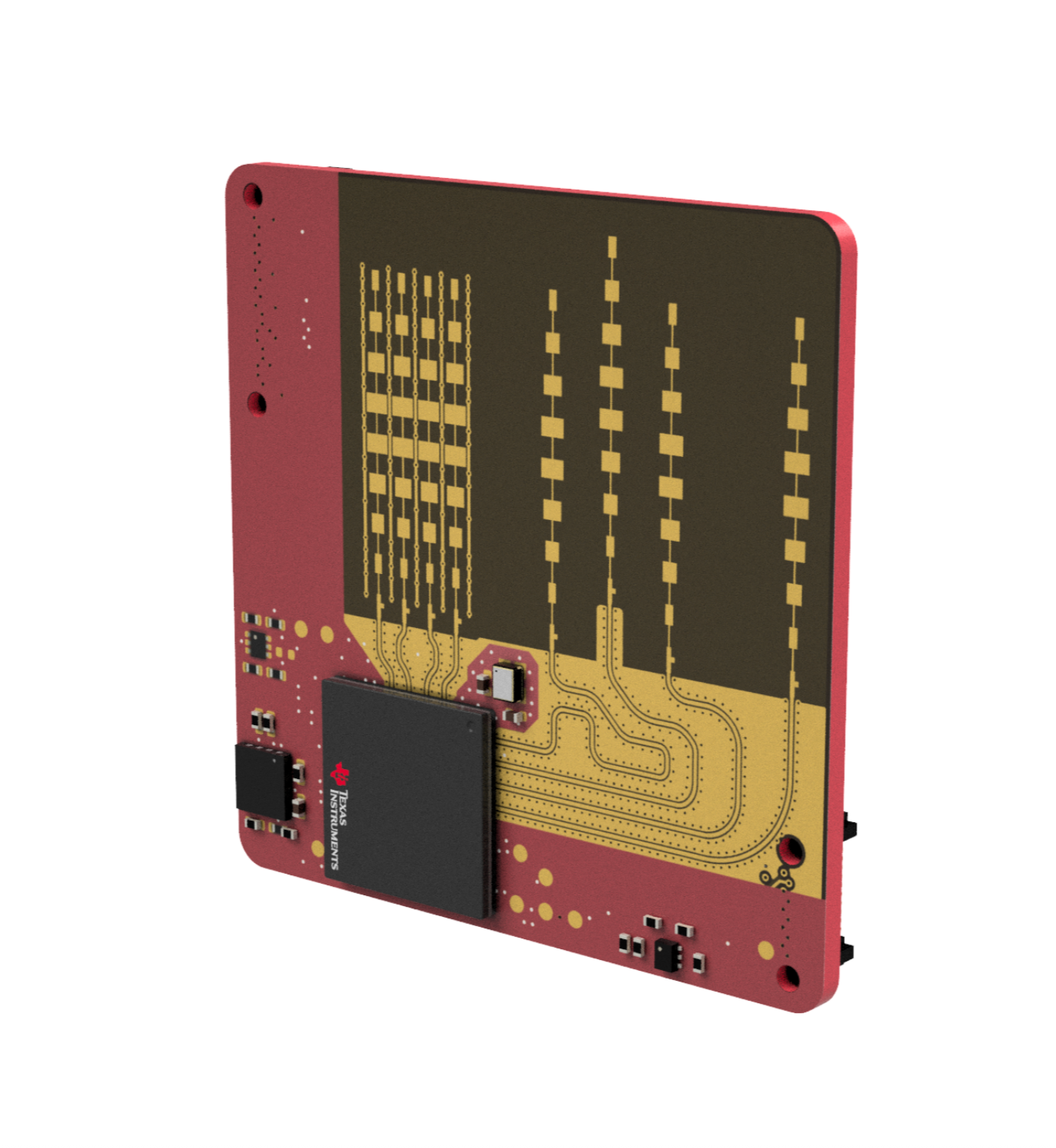

BB-MM1-A-1 is the long-range antenna for the BotBlox modular mmWave radar platform.

It has a wide horizontal FoV and a narrow vertical FoV, so you can cover a broad area from left to right while still reaching much farther than a wide-view radar.

Detection range: up to 100 m for a 0.5 m² RCS target
Field of view: 74° x 12° FoV

Best for

Long-range target detection, forward-looking sensing, UAS and cUAS applications, perimeter sensing, and anywhere you need good horizontal coverage at distance.

Think of BB-MM1 as a wide, thin radar beam. It scans across a broad area from left to right while keeping the vertical field relatively narrow.

Modular by design

BB-MM1 plugs directly into the BB-MMB-A-1 Radar Baseboard.

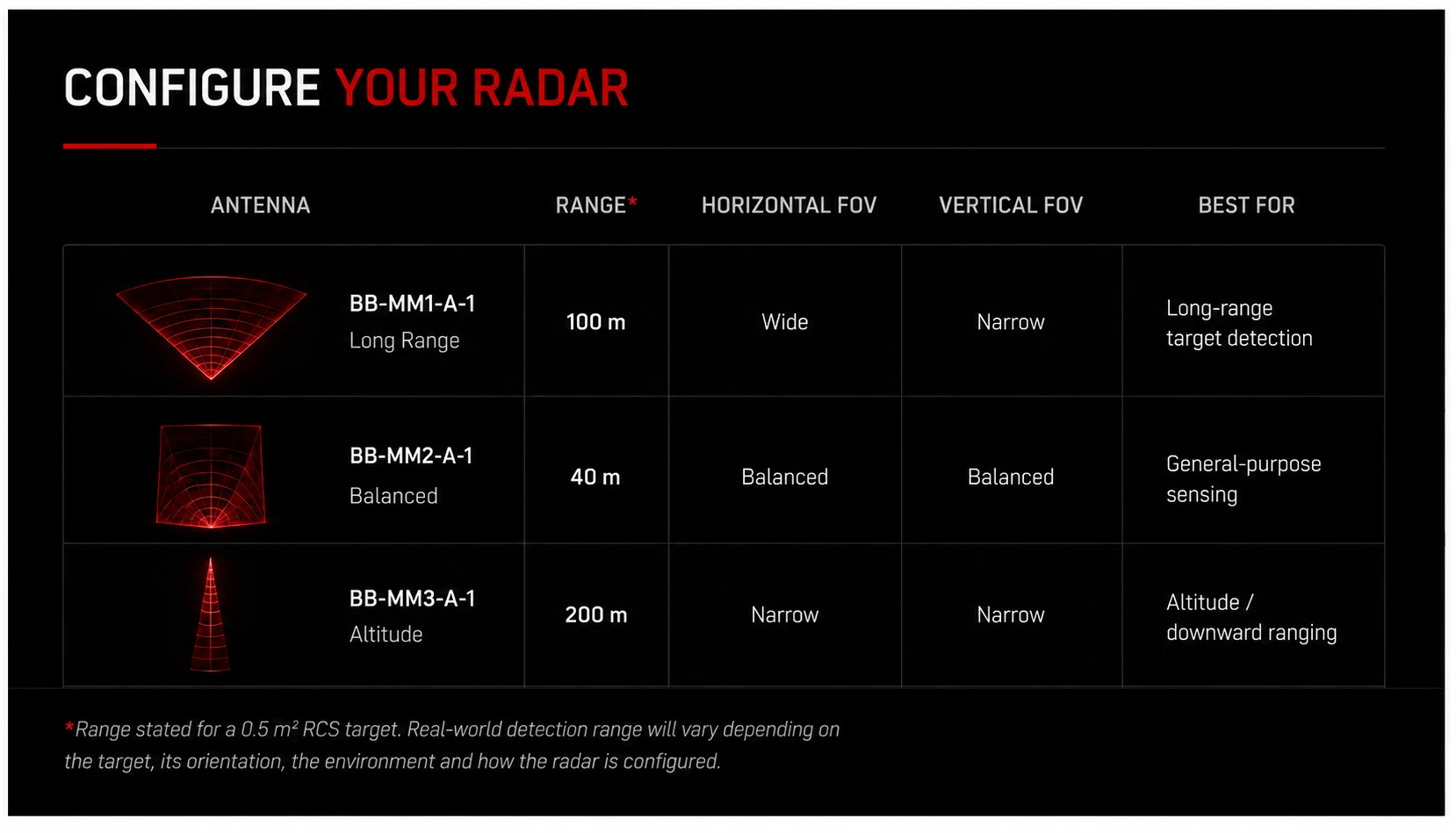

If you later need a wider vertical FoV, shorter-range obstacle detection or dedicated altitude sensing, just remove BB-MM1 and swap in a different antenna board.

Requires BB-MMB-A-1 Baseboard.
